Capacity : 50-500, Stroke : 30-40 mm, Working: 700 bar (Max)

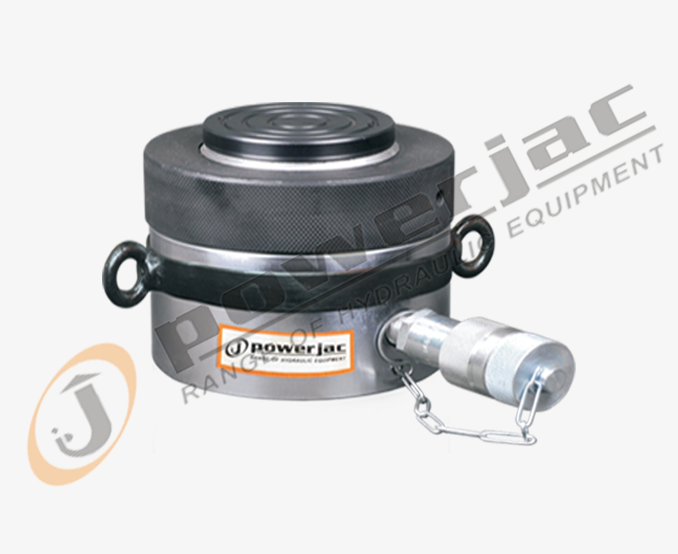

We are Manufacturer, Supplier, Exporter of: Threaded Ram Load Return Hydraulic Pancake Jacks ( PCT Series ) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Compact, Pancake design, heat treated alloy steel body.
- Hard Chrome plated ram to resist scoring & corrosion.
- Single acting, load return, threaded ram and mechanical stfety lock-nut to sustainload nut for longer period.
- High Pressure long life seals.
- Port Size 1/4" and 3/8" NPT.
- QCC with plastic dust cap. Aluminium Dust Cap on Request.
- customised capacity and stroke on request
These jacks are designed specifically where space is a constrait. Ideally used where no other cylinders wil fit for lifting, lowering, spreding of stuctures, bridges, heavy machinery etc.
Technical Specification :
|
MODEL NO.
|
Capacity
|
Closed Ht.
'CH'
|
Stroke
'S' |
Ram Dia
'RD' |
Outer Dia
'D' |
Oil
Volume |
Approx
Weight |
Suitable
Hand Pump |
|
Tons
|
MM
|
MM
|
MM
|
MM
|
C.C.
|
KG.
|
||
|
PCT 50/30
|
50
|
110
|
30
|
100
|
145
|
192
|
13.5
|
PHP 200/2
|
|
PCT 100/30
|
100
|
125
|
30
|
140
|
185
|
475
|
22.5
|
PHP 400/3N
|
|
PCT 150/30
|
150
|
140
|
30
|
170
|
225
|
697
|
41.5
|
PHP 400/3N
|
|
PCT 200/40
|
200
|
170
|
40
|
200
|
270
|
1281
|
60.5
|
PHP 500/6
|
|
PCT 250/40
|
250
|
180
|
40
|
220
|
295
|
1548
|
76.5
|
PHP 500/6
|
|
PCT 300/40
|
300
|
190
|
40
|
240
|
325
|
1894
|
103.5
|
PHP 500/6
|
|
PCT 400/40
|
400
|
200
|
40
|
270
|
365
|
2324
|
142.0
|
PHP 500/6
|
|
PCT 500/40
|
500
|
215
|
40
|
300
|
415
|
2865
|
200.0
|
PHP 500/6
|
To reduce the closed height of the jack, there is no seal box. One has to monitor the lifting height and gradually tighten the safety lock nut while lifting to avoid accident & failur of jack. Place rigid base below the jack.
