Capacity : 10-300 tons, Stroke : 20 mm, Working Pr : 700 bar ( Max.
)

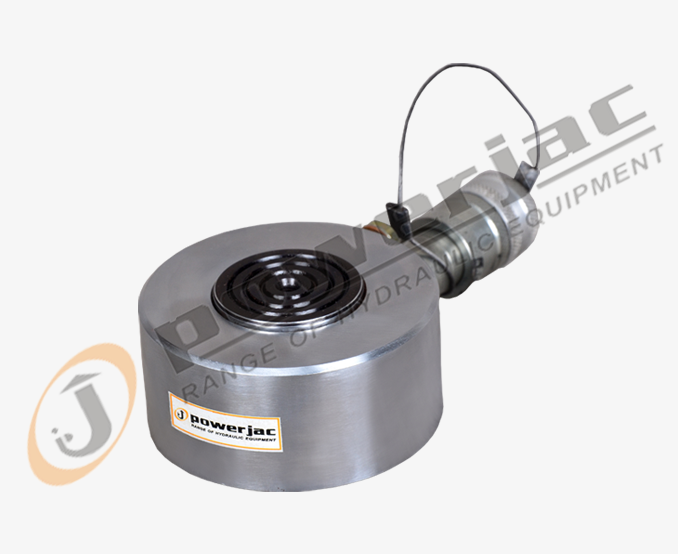

We are Manufacturer, Supplier, Exporter of: Plain Ram Load Return Hydraulic Pancake Jacks ( PCP Series ) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Compact, pancake design, heat treated alloy steel body.
- Hard chrome plated ram to resist scoring and corrosion.
- Single acting, load return, Plain Ram.
- Grooved ram acts as integral saddle
- High pressure long life seals.
- Port Size 1/4" and 3/8" NPT.
- QCC with plastic dust cap. Aluminium Dust Cap on Request.
- Customised capacity and stroke on request
Pancake Jacks are designed specifically where space is a constraint. Ideally used where no other cylinders fits for lifting, lowering, spreading of structures, bridges, heavy machinery etc.
Technical Specification :
|
MODEL NO.
|
Capacity
|
Closed
Ht. 'CH' |
Stroke
'S' |
Ram Dia
'RD' |
Outer Dia
'D' |
Oil
Volume |
Approx
Weight |
Suitable
Hand Pump |
|
tons.
|
mm.
|
mm.
|
mm.
|
mm.
|
cc.
|
kgs.
|
||
|
PCP 10/020
|
10
|
40
|
20
|
45
|
85
|
40.5
|
1.6
|
PHP 200/2
|
|
PCP 20/020
|
20
|
45
|
20
|
63
|
100
|
80
|
2.5
|
PHP 200/2
|
|
PCP 30/020
|
30
|
50
|
20
|
75
|
110
|
113
|
3.5
|
PHP 200/2
|
|
PCP 50/020
|
50
|
60
|
20
|
100
|
140
|
200
|
6.8
|
PHP 200/2
|
|
PCP 100/020
|
100
|
80
|
20
|
140
|
176
|
395
|
15
|
PHP 200/2
|
|
PCP 150/020
|
150
|
85
|
20
|
170
|
225
|
580
|
25
|
PHP 400/3N
|
|
PCP 200/020
|
200
|
90
|
20
|
200
|
255
|
800
|
35
|
PHP 400/3N
|
|
PCP 300/020
|
300
|
100
|
20
|
240
|
310
|
1150
|
60
|
PHP 400/3N
|
To reduce the closed height of the jack, there is no seal box. One has to monitor the lifting stroke since there would be a chance of ram coming out of the cylinder which would result in a accident and failure of jack. Place rigid base below the jack.
