We are Manufacturer, Supplier, Exporter of: Roll Table Frame Press from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.

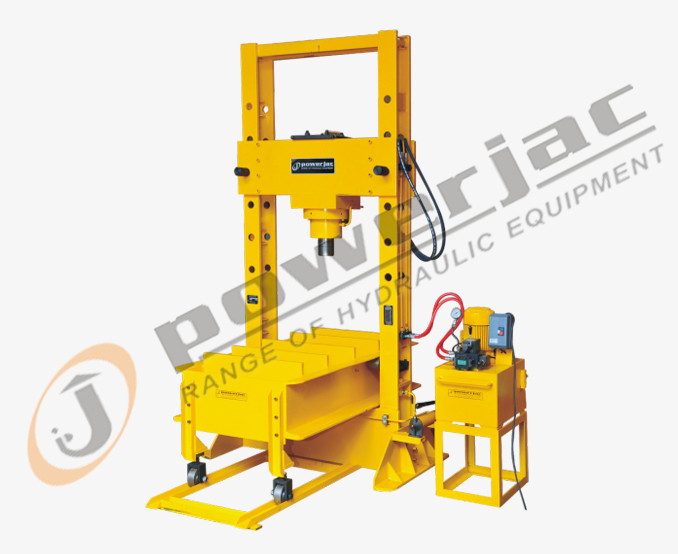

Features / Benefits :- Table rolls smoothly on 4 bottom wheels over fabricated rail.
- Table is lifted precisely by exclusive table lifting cylinder and pump.
- Considering safety, frame is stationary and table rolls.
- Double acting cylinder.
- Lateral movement of cylinder for covering max. distance.
- Vertical movement of (Moving) Bolster Table allows maximum accommodation of job height.
- Hard chrome plated ram to resist scoring and corrosion.
- Wiper to arrest ingress of foreign particles.
- Working pressure 450-700 Bar.
- Operated by Power pack.
- Effortless daylight adjustment hydraulically by main cylinder.
Technical Specification :
Model No. |
Capacity |
Stroke |
Vertical Daylight |
Table Width |
Pump Height From GL |
Distance Between Hole |
Distance Between Column |
Width |
Depth |
Overall Width |
Overall Depth |
Distance |
Distance |
Working Height From GL |
Overall Height |
Electrical Motor Capacity |
Weight Approx |
|
| A1 min | A2 Max | B | C | D | E | F | G | H | J | K | L | M | N | |||||
WRF-50 |
50 |
330 |
150 | 940 | 520 | 300 | 200 | 730 | 950 | 125 | 1500 | 1600 | 200 | 270 | 750 | 2800 | 3 | 1100 |
WRF-100 |
100 |
330 |
160 | 1048 | 675 | 300 | 222 | 890 | 1150 | 180 | 1600 | 1675 | 205 | 270 | 815 | 3020 | 3 | 1750 |
WRF-200 |
200 |
330 |
280 | 1295 | 985 | 300 | 255 | 1220 | 1625 | 230 | 2200 | 2200 | 205 | 380 | 915 | 3200 | 5 | 4200 |
