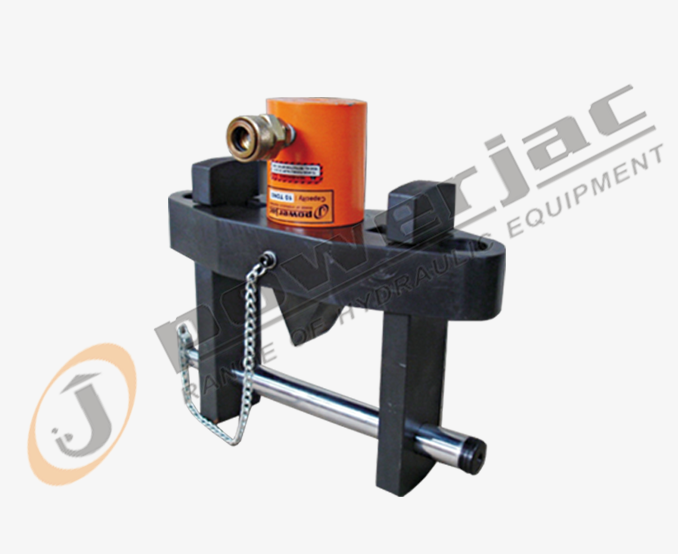

We are Manufacturer, Supplier, Exporter of: Hydraulic Flange Spreaders (HFS-Series) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Light weight, Compact, easy to use.
- Single acting spring return
- Cylinder honed to a surface finsh of 0.4 microns
- Hard chrome plated ram to resist scoring and corrosion
- Wiper to arrest ingress of foreign particles.
- Adjustable jaw for job adaptability
- Wedge for limited spread application which are optional.
- QCC with plastic dust cap. Aluminium Dust cap on request.
- Tandem operation for even spreading
Remove all nuts before operation
Application :
Technical Specification :
Speading of pipe flanges in petrochemicals, sugar, cement, chemical, steel mills, power plants and process industries.
Technical Specification :
Model |
Capacity |
Stroke |
Spread |
Weight |
Suitable Hand Pump |
|
tons. |
mm. |
mm. |
mm. |
kgs |
||
HFS - 5 |
5 |
40 |
59 |
163 |
5.0 |
PHP-200/2 |
HFS - 10 |
10 |
50 |
61 |
224 |
8.5 |
PHP-200/2 |
HFS - 15 |
15 |
55 |
65 |
230 |
10.0 |
PHP-200/2 |
