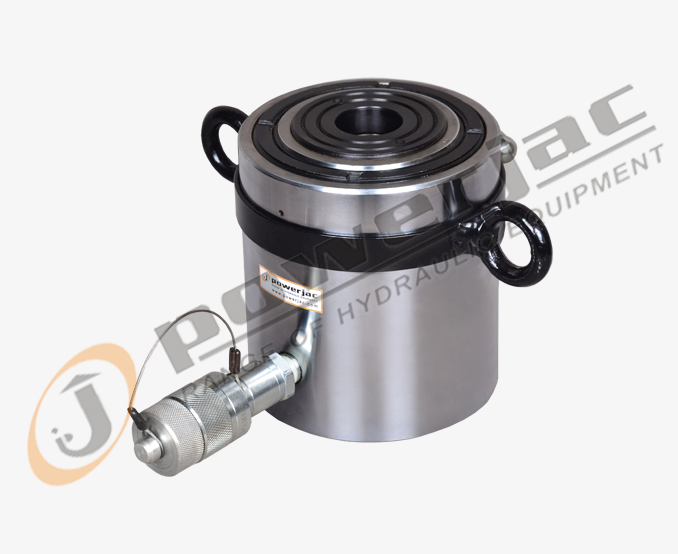

Plain Ram, Center Hole,
Spring Return, Single Acting
Hydraulic Jacks (CHS-Series)

POWERJAC Systems Pvt. Ltd. Hydraulic Jacks Manufacturer Capacity : 10-100 tons, Stroke : 50-100 mm, Working: 700 bar (Max.)

We are Manufacturer, Supplier, Exporter of: Plain Ram, Center Hole, Spring Return, Single Acting Hydraulic Jacks (CHS-Series) from Belgaum, Karnataka, India.

Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.

Features / Benefits :
  • High strength, Heat treated alloy steel body.
  • Hard chrome plated ram to resist scoring and corrosion.
  • Single acting spring return.
  • Wiper to arrest ingress of foreign particles.
  • Bigger center hole allows to run screws / cables / studs to pull or push forces.
  • High pressure long life seals.
  • QCC with plastic dust cap.
  • Aluminum Dust Cap on Request.
  • Bottom mounting holes for fixturing different types of puller attachments.
  • Customised Higher capacity, strokes available on request.
  • Port Size 3/8" NPT.
Download Brochure Request Quote
Application :

These jacks are designed to attach various puller attachments for removing gears, bearings, pulleys etc.


Technical Specification :

MODEL NO.
Capacity
Closed Ht. 'CH'
Stroke 'S'
Center Hole Dia 'CH'
Ram Dia 'RD'
Outer Dia 'D'
Oil Volume
Approx Weight
Suitable Hand Pump
tons.
mm.
mm.
mm.
mm.
mm.
cc.
kg
CHS 10/50
10
140
50
21
56
85
82
4.5
PHP 200 / 2
CHS 10/75
10
165
75
21
56
85
120
5.5
PHP 200 / 2
CHS 10/100
10
190
100
21
56
85
159
6.5
PHP 200 / 2
CHS 20/50
20
145
50
28
70
105
181
8.2
PHP 200 / 2
CHS 20/75
20
170
75
28
70
105
264
9.5
PHP 200 / 2
CHS 20/100
20
195
100
28
70
105
346
10.0
PHP 200 / 2
CHS 30/50
30
150
50
34
95
135
311
11.0
PHP 200 / 2
CHS 30/75
30
175
75
34
95
135
452
13.0
PHP 200 / 2
CHS 30/100
30
200
100
34
95
135
594
15.0
PHP 200 / 2
CHS 50/50
50
170
50
42
110
160
380
19.0
PHP 200 / 3
CHS 50/75
50
195
75
42
110
160
570
21.3
PHP 200 / 3
CHS 50/100
50
220
100
42
110
160
760
24.0
PHP 200 / 3
CHS 60/50
60
200
50
54
120
175
471
26.2
PHP 200 / 3
CHS 60/75
60
225
75
54
120
175
706
29.2
PHP 200 / 3
CHS 60/100
60
250
100
54
120
175
942
31.5
PHP 200 / 3
CHS 80/50
80
210
50
60
150
215
615
45.0
PHP 200 / 3
CHS 80/75
80
235
75
60
150
215
923
51.0
PHP 500 / 6
CHS 80/100
80
255
100
60
150
215
1231
56.0
PHP 500 / 6
CHS 100/50
100
215
50
70
170
225
852
50.0
PHP 500 / 6
CHS 100/75
100
240
75
70
170
225
1278
54.0
PHP 500 / 6
CHS 100/100
100
265
100
70
170
225
1704
58.0
PHP 500 / 6
Plain Ram, Center Hole, Spring Return, Single Acting Hydraulic Jacks (CHS-Series)
