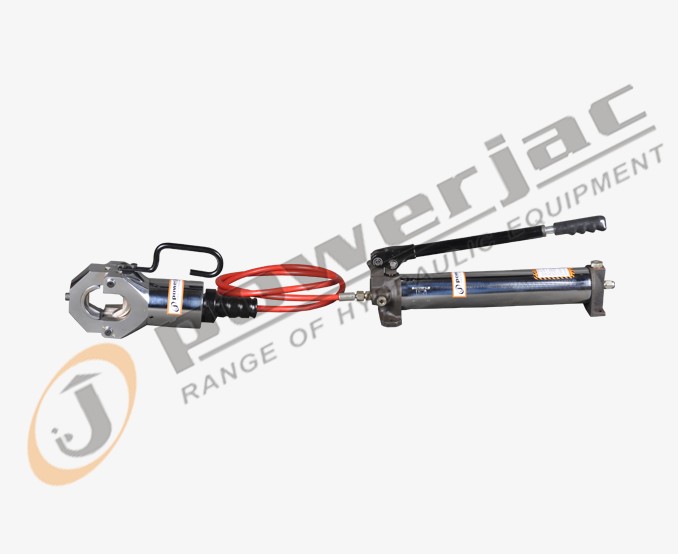

We are Manufacturer, Supplier, Exporter of: Hydraulic Crimping Tool (HCT-Series) from Belgaum, Karnataka, India.
Model No. HCT - 185, 400 & 630 are suitable for AAAC ( All Aluminium Alloy Conductor )
Model No. HCT - 1000 is suitable for ACSR ( Aluminium Conductor Steel Reinforce )
Features / Benefits :- Light weight, compact, easy to use.
- Single acting spring return for fast retraction.
- High pressure long life seal.
- Replaceable die sets of various sizes.
- Useful in electrical substations for crimping overhead-clamps / high tension line & connectors of aluminium & steel at elevated locations up to 35 meters above ground level.
- Crimping pattern is hexagonal.
Technical Specification :
MODEL. |
Capacity (mm) |
Die Sizes (mm) |
Die suitable for |
Suitable Hand Pump |
HCT-185 |
10-185 |
10,16,25,35,50,70,95,120,150 & 185 |
0.1 (AL) |
PHP 500/2 |
HCT-400 |
10-400 |
10,16,25,35,50,70,95,120,150,185,240,300 & 400 |
0.2 (AL) |
PHP 500/6 |
HCT-630 |
10-630 |
10,16,25,35,50,70,95,120,150,185,240,300,400,500 & 630 |
0.2 (AL) |
PHP 500/6 |
HCT-1000 |
10-1000 |
10,16,25,35,50,70,95,120,150,185,240,300,400,500,630,800 & 1000 |
0.5 (AL) & (ST) |
PHP 500/12 or 2hp Power Pack |
