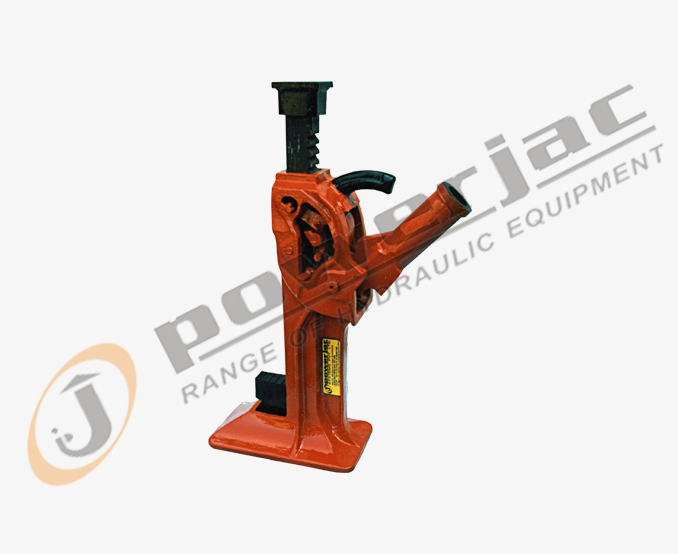

We are Manufacturer, Supplier, Exporter of: Mechanical Infringing Track Jacks ( TJ - Series) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Rugged construction for safety and efficient jacking
- Alloy steel heat treated multiple pawls for strength and rigidity
- Alloy steel body with integral handle
- Forged & heat treated alloy steel rack with precision milled teeth for extra service life
- Large base for stability
- Tooth by tooth lifting and lowering. Trip lowering for quick withdrawal and winding up operation.
- Lift per one stroke is 15mm
- Toe lift capacity is 50% of head load.
Application :
Technical Specification :
These jacks are simplest, versatile & general purpose widely used in railway track maintenance, ship yards, oil fields, mining and construction work.
Technical Specification :
MODEL NO. |
Lifting Capacity |
Closed Height From Head of jack |
Closed Height From Toe |
Total Lift |
Lift per stroke |
Base Size |
Head Size |
Foot Lift (Toe Size) |
Weight |
|
tons. |
tons. |
mm. |
mm. |
mm. |
mm. |
mm. |
kgs. |
kgs. |
kgs.. |
|
TJ-15T |
15 |
7.5 |
22 |
560 |
12 |
304 |
75x75 |
160x260 |
50 |
32 |
