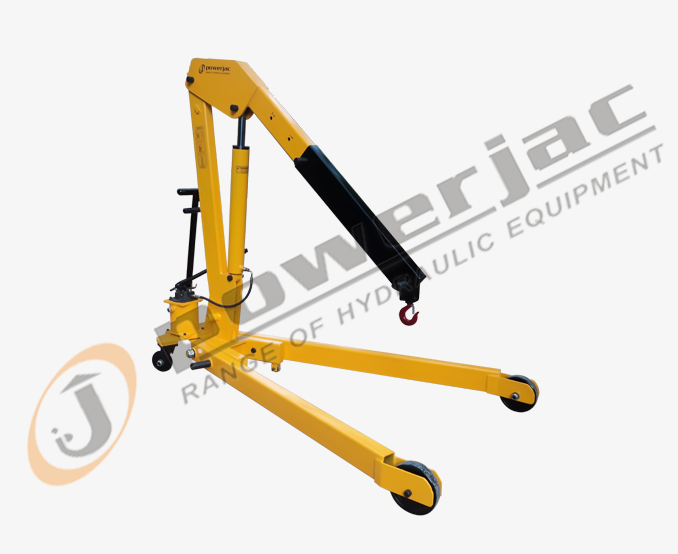

We are Manufacturer, Supplier, Exporter of: Foldable Hydraulic Mobile Cranes (PMC - Series) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Heavy duty, rugged construction.
- Foldable legs for portability.
- Horizontal boom adjustable and lockable.
- Single acting, load return, hand pump operated.
- Cylinder honed to a surface finish of 0.4 microns.
- Hard chrome plated ram to resist scoring and corrosion.
- Front wheels are fixed and rear wheels are 360° movable for easy mobility.
Technical Specification :
Model |
Capacity |
Stroke |
Max. Lift 'ML' |
Max Dist betw. Legs 'DL' |
Weight (appx) |
tons. |
mm. |
mm. |
mm. |
kgs. |
|
PMC-1 |
1 |
2350 |
300 |
1025 |
95 |
PMC-2 |
2 |
2500 |
300 |
1150 |
125 |
PMC-3 |
3 |
2600 |
300 |
1150 |
135 |
