We are Manufacturer, Supplier, Exporter of: Hydraulic Power Packs (25 to 700 Bar) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Various models to suit varied applications
- 100% interchangeability for optional controls
- Designed for continuous duty applications
- Custom built power packs offered on request
Technical Specification :
|
Model
|
Flow (Lpm)
|
Drive (HP)
|
Oil Cap (Ltr)
|
Optional
Controls
|
|

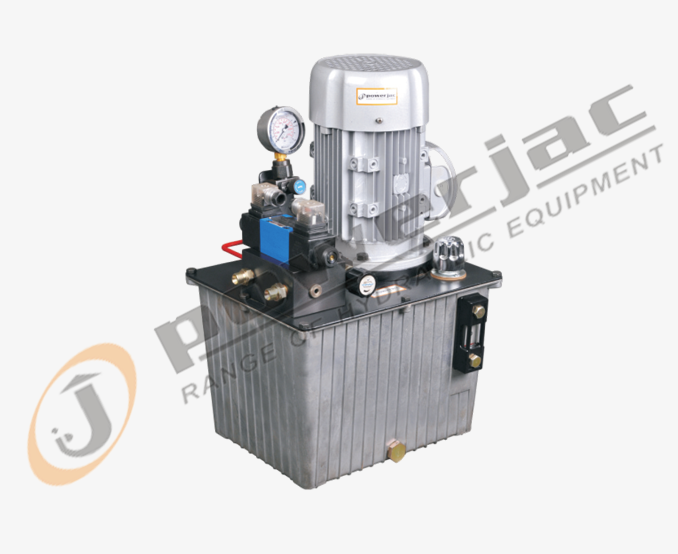

MTP Special Series
for Machine Tool -25 Bar pressure. Gear Pump, Piston
Pump / Electrical Drive 440V AC
|
||||
|
MTP-1
|
4.8
|
1
|
30
|
Solenoid Valve (SV)
Additional Gadget Available on request
|
|
MTP-3
|
12.7
|
3
|
45
|
|
|
MTP-5
|
20
|
5
|
60
|
|
|
MTP-7
|
30
|
7
|
120
|
|
|
MTP-10
|
40
|
10
|
250
|
|
|
MTP Special Series
for Machine Tool -25 Bar pressure. Gear Pump, Piston
Pump / Electrical Drive 440V AC
|
||||
|
VLP-1
|
4.8
|
1
|
30
|
Solenoid Valve -(SV)
Flow Control -(FC) Additional Gadget Available on
request
|
|
VLP-3
|
9
|
3
|
45
|
|
|
VLP-5
|
16
|
5
|
60
|
|
|
VLP-10
|
30
|
10
|
120
|
|
|
VLP-12
|
40
|
12
|
250
|
|
|

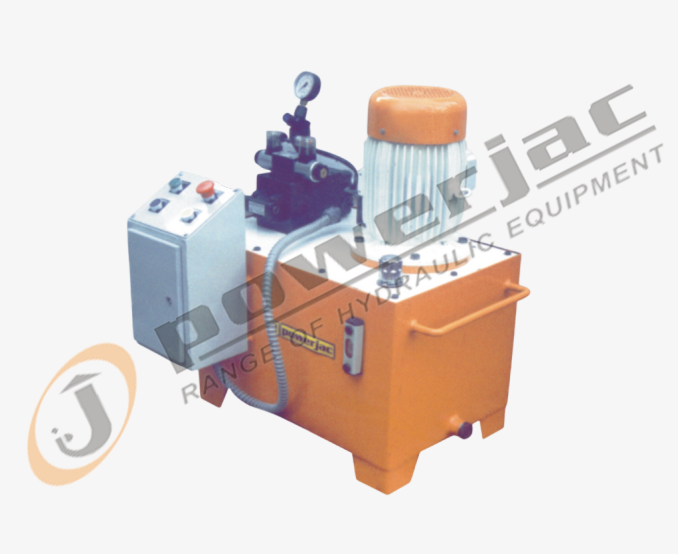

LPP Series -180 Bar
Pressure, Gear Pump / Electrical Drive 440V AC
|
||||
|
LPP-3
|
4.8
|
3
|
30
|
Solenoid Valve (SV)
Additional Gadget Available on request
|
|
LPP-5
|
9
|
5
|
45
|
|
|
LPP-10
|
16
|
10
|
120
|
|
|
LPP-20
|
30
|
20
|
120
|
|
|
MPP series -300 Bar
Pressure, piston Pump /Electrical Drive 440V AC
|
||||
|
MPP-1
|
1.5
|
2
|
20
|
Solenoid Valve (SV)
Additional Gadget Available on request
|
|
MPP-3
|
2.6
|
3
|
30
|
|
|
MPP-5
|
4.2
|
5
|
45
|
|
|

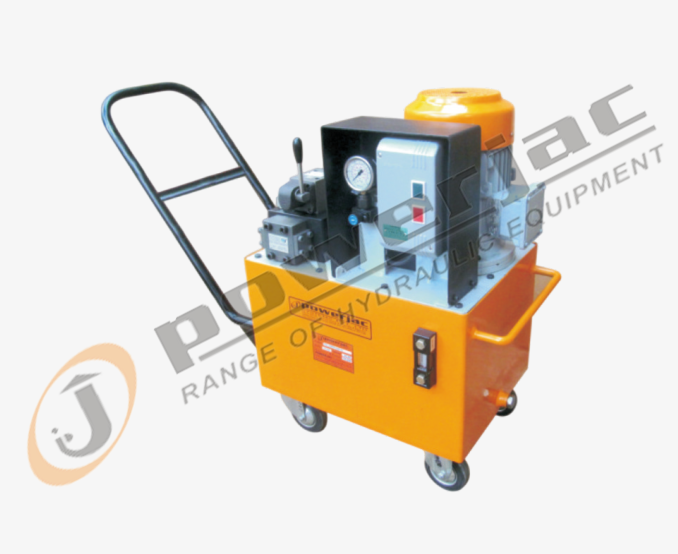

HPP series -550 Bar
Pressure, piston Pump /Electrical Drive 440V AC
|
||||
|
HPP-2
|
1
|
2
|
20
|
Manual Valve (MV)
Solenoid Valve (SV-IMP) Additional Gadget Available on
request
|
|
HPP-5
|
2.6
|
5
|
30
|
|
|
HPP-7.5
|
3.7
|
7.5
|
45
|
|
|
VHP Series -700 Bar
Pressure, Piston Pump / Single Discharge / Electrical
Drives 440V AC
|
||||
|
VHP-2
|
1
|
2
|
20
|
Manual Valve (MV) Single Phase Solenoid
Valve -(SV-IMP) Additional Gadget Available
|
|
VHP-3
|
1.5
|
3
|
30
|
|
|
VHP-5
|
2.6
|
5
|
50
|
|
|
VHPD Series -700 Bar Pressure, Piston Pump /
Double discharge / Electrical Drive 440V AC
|
|||||||
|
Model
|
Pressure Rating (Bar)
|
Flow (Lpm)
|
Drive
|
Oil Tank capacity (Ltrs)
|
Optional Controls
|
||
| 1st Stage | 2st Stage | 1st Stage | 2st Stage | (HP) |
Solenoid Valve - (SV-IMP) Manual Valve - (MV) |
||
| VHPD-2 | 50 | 700 | 3.5 | 1 | 2 | 40 | |
| VHPD-3 | 50 | 700 | 4.0 | 1.5 | 3 | 50 | |
| VHPD-5 | 50 | 700 | 5.2 | 1.5 | 5 | 70 | |
| Model | Flow (Lpm) | Drive (HP) | Oil Capm (Ltr) | Weight | Optional Controls | ||
| Petrol Engine -500 Bar Pressure, Piston Pump / Diesle Drive | |||||||
| PEP-1 | 5.0 | 5.5 | 40 | 60 | Manual Valve (MV) | ||

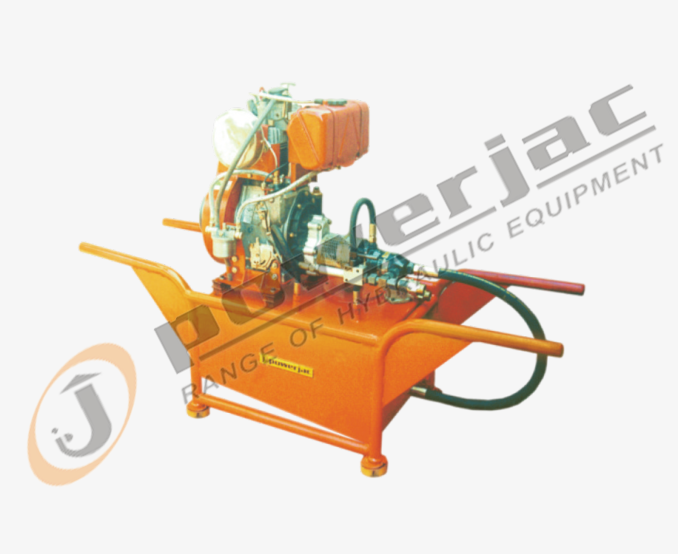

| Diesel Engine -500 Bar Pressure, Piston Pump / Diesel Drive | |||||||
| DEP-1 | 5.0 | 6.3 | 40.0 | 70 | Manual Valve (MV) | ||
